Beijing Silk Road Enterprise Management Services Co.,LTD
Professional N95 Mask Making Machine
Beijing Silk Road Enterprise Management Services Co.,LTD
Professional N95 Mask Making Machine
 |
| Place of Origin: | china |
| Certification: | ISO |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/ month |
| Name: | Automatic N95 Respirator Mask Machine Folded Type | Automatic Grade: | Automatic |
|---|---|---|---|
| Condition: | New | Weight: | 5000KG |
| Warranty: | 1 Year | Voltage: | 220V/380V |
| Capacity: | 3000pcs/hour | Material: | Nonwoven Fabric,channel Steel |
| Power: | 15KW | Fold Symmetry: | ±0.1mm |
| High Light: | cup type mask making machine,face mask pressing machine |
||

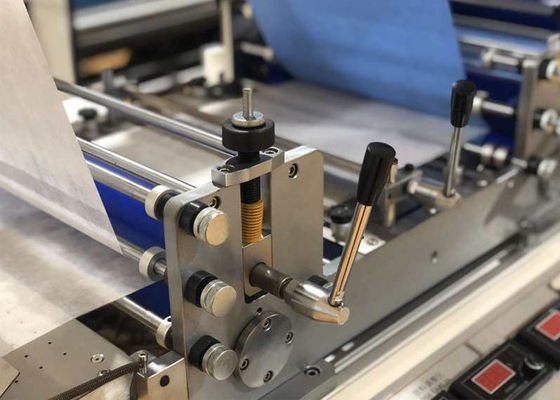

Non Woven N95 Cup Mask Making Machine
Photoelectric detection position.
Beautiful, strong and rustproof with the aluminum alloy structure.

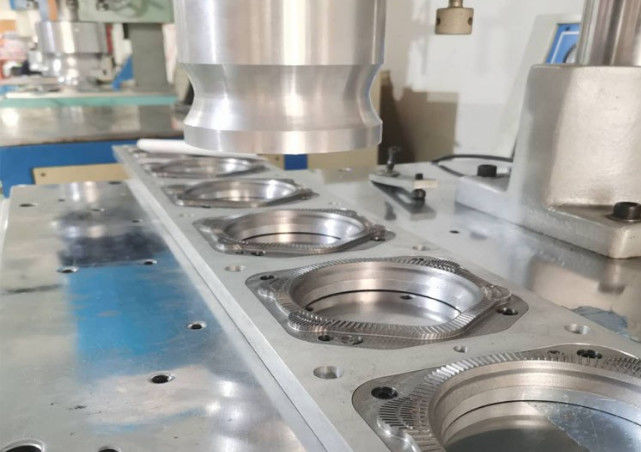

This machine is used to welding breathing valve on 3D fold face mask/ 2D mask/ cup mask.
Description:
This production line is a fully automatic one-to-two face mask machine, one body machine drives two ear band machines. After the main body machine outputs the mask body, the mask body sheet is conveyed to the turning mechanism by a conveyor belt structure. The reversing mechanism is used to flip the mask plate onto the belt connected to the ear band machine, and then the mask sheet is conveyed to the first mask plate on the front of the ear band machine through the conveyor belt, and finally the mask sheet is placed on the ear band by the cylinder pressing In the mask plate of the machine, the ear band machine is used to complete the welding of the ear bands of the mask and the edging, thereby completing the production of an ear band mask product.
The equipment is used to produce a disposable non-woven mask. The equipment is mainly composed of feeding, shaping, welding, cutting, connecting and transferring, polar ear welding, blanking and stacking, etc. In addition to manual feeding, the whole process from the raw material feeding to the nose rib insertion edge cutting finished product stacking is fully automatic operation. The machine can be combined by one pull one or one pull two-pole ear welder to meet different production capacity requirements.
pecifications
| No. | Item | Double Lanes | |
| 1 | Product Name | cup type Face Mask Making Machine | |
| 3 | Capacity | 100-120 pcs/min | |
| 4 | Equipment Dimension | L 7050 X W 3800 X H 2000 mm | |
| 5 | Space requires | 9.0m x 4.5m | |
| 6 | Interface | Power | 3 phases 5 lines,380V, 25A |
| 7 | Energy consumption | maximum power | 13.5KW |
| 7 | Conditions of use | Space | The distance between the equipment and the wall shall not be less than 900mm |
The process of the equipment is a fully automatic assembly line which uses the principle of ultrasonic welding and edge sealing to complete the composite forming of multi-layer materials of the plane mask, then cutting, wrapping and welding the ear rope, and make the finished products stack and transfer according to the requirements.
Pre-Sales Service
1.Inquiry and consulting support, professional packing solution for free.
2.Machine videos for your reference.
3.Sample testing support.
4. View our Factory.
After-sale Service
1. Manuals / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happen and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. ICT engineers & technicians are available to send to your countries for services if you agree to pay the expenditure.
4. The machine will have a 1-year warranty for the machine,2 years warranty for the electric part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one for you. The warranty will begin after the machine send out we received the B/L.
