| Place of Origin: | China |
| Brand Name: | RILANT |
| Certification: | ISO |
| Model Number: | SR-420 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/ month |
| Type: | Inner Earloop Face Mask | Condition: | New |
|---|---|---|---|
| Application: | Nonwoven Fabric Disposable Machine,Surgical Face Mask,Hometextile Making,medical Mask,nonwoven Mask | Capacity: | 3000pcs/hour |
| Weight: | 5000KG | Automatic Grade: | Automatic |
| Machine Type: | Disposable Nonwoven Machinery | Raw Material: | PP Chips,Non Woven,Nonwoven/melt Blown Fabric |
| Material: | Nonwoven Fabric,channel Steel | ||
| High Light: | surgical face mask making machine,face mask making machine |
||

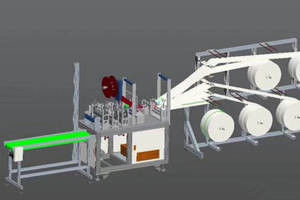

N95 / KN95 Surgical Mask Making Machine
The automatic N95 Surgical Mask Making Machine is automatic from material feeding to mask collection.
High automation in ear-loop welding, edge wrapping, counting, and material discharging.
The ultrasonic technique does no harm to the characteristic of the material.
Easy and safe operation.
The N95 Surgical Mask Making Machine is used to produce a disposable non-woven mask.
Mask Making Machine is mainly composed of feeding, shaping, welding, cutting, connecting and transferring, polar ear welding, blanking and stacking, etc.
In addition to manual feeding, the whole process from the raw material feeding to the nose rib insertion edge cutting finished product stacking is fully automatic operation.
The machine can be combined by one pull one or one pull two-pole ear welder to meet different production capacity requirements
Description:
This Mask Making production line is a fully automatic one-to-two face mask machine, one body machine drives two ear band machines.
After the main body machine outputs the mask body, the mask body sheet is conveyed to the turning mechanism by a conveyor belt structure. The reversing mechanism is used to flip the mask plate onto the belt connected to the ear band machine, and then the mask sheet is conveyed to the first mask plate on the front of the ear band machine through the conveyor belt, and finally the mask sheet is placed on the ear band by the cylinder pressing In the mask plate of the machine, the ear band machine is used to complete the welding of the ear bands of the mask and the edging, thereby completing the production of an ear band mask product.
Specifications
| No. | Item | Double Lanes | |
| 1 | Product Name |
N95 Respirator Mask Machine Folded Type Non-Woven Face Mask Making Machine |
|
| 3 | Capacity | 100-120 pcs/min | |
| 4 | Equipment Dimension | L 7050 X W 3800 X H 2000 mm | |
| 5 | Space requires | 9.0m x 4.5m | |
| 6 | Interface | Power | 3 phases 5 lines,380V, 25A |
| 7 | Energy consumption | maximum power | 13.5KW |
| 7 | Conditions of use | Space | The distance between the equipment and the wall shall not be less than 900mm |
The process of the equipment is a fully automatic assembly line which uses the principle of ultrasonic welding and edge sealing to complete the composite forming of multi-layer materials of the plane mask, then cutting, wrapping and welding the ear rope, and make the finished products stack and transfer according to the requirements.
