Beijing Silk Road Enterprise Management Services Co.,LTD

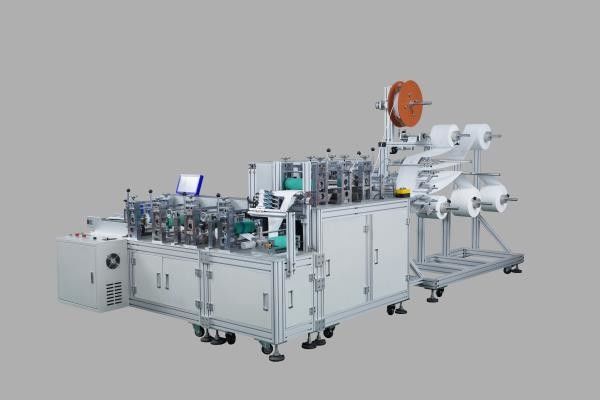

Professional N95 Mask Making Machine
Beijing Silk Road Enterprise Management Services Co.,LTD
Professional N95 Mask Making Machine
 |
| Place of Origin: | china |
| Certification: | ISO |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/ month |
| Name: | Disposbale Antiviral Face Mask Machine | Frame:: | Aluminum Profile |
|---|---|---|---|
| Voltage:: | AC220V,50HZ | Automatic Grade: | Full Automatic |
| Capacity:: | 100-120 Pcs/min. | Power Consumption:: | 8.7KW |
| Highlight: | face mask maker machine,fully automatic mask making machine |
||
Description
This machine is mainly used for automatic forming of flat masks. After the entire roll of fabric is unrolled, it is driven by rollers, and the fabric is automatically folded and wrapped. Nose bridge rolls unrolled by traction. Cut and import into the hemmed fabric, both sides are welded to seal by ultrasonic welding, and then through the ultrasonic side seal. It is cut and shaped by a cutter ; transported to the two mask ear band welding stations through an assembly line. The final mask is formed by ultrasonic welding. After the mask is made, it is transported to flat belt line and collected.
Function
Automatic mask production line, also known as one to three mask production lines, composed of a mask body machine and three ear band composed of a welding machine. Every minute can output 120-150 piece of complete plane mask, mask specifications: 175*(80-100) mm three layers of non-woven planar filter type gauze mask. Compared with the single independent type mask making machine, joined the automatic conveyor belt and the connecting port, the unique design, in addition, to improve the production efficiency, reduce artificial cost, is in order to minimize the artificial participation, and reduce the risks of a mask is pollution in the production process.
Specification:
| Size | 6500mm(L)×3500mm(W)×1950mm(H) |
| Mask specification | 175*95mm |
| Production efficiency | 100-120PCS/Min |
| Cutting layer | 3-4 layers(Standard 3 layers) |
| Qualification rate | 98-99% |
| Failure rate | Less than 1% |
| Weight | ≤5000kg, ground load bearing > 300kg |
| Working power | 220VAC ± 5%, 50z, rated power about 6.5-8.5KW |
| Compressed air | 0.4 ~ 0.7MPa, the use flow rate is about 300L / min |
| Operating environment | Temperature 10 ~ 35 ℃, humidity 5-35% HR No flammable and corrosive gas, no dust (cleanness not less than 100,000). |
Pre-Sales Service
1.Inquiry and consulting support, professional packing solution for free.
2.Machine videos for your reference.
3.Sample testing support.
4. View our Factory.
After-sale Service
1. Manuals / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happen and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. ICT engineers & technicians are available to send to your countries for services if you agree to pay the expenditure.
4. The machine will have a 1-year warranty for the machine,2 years warranty for the electric part. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one for you. The warranty will begin after the machine send out we received the B/L.
