Beijing Silk Road Enterprise Management Services Co.,LTD

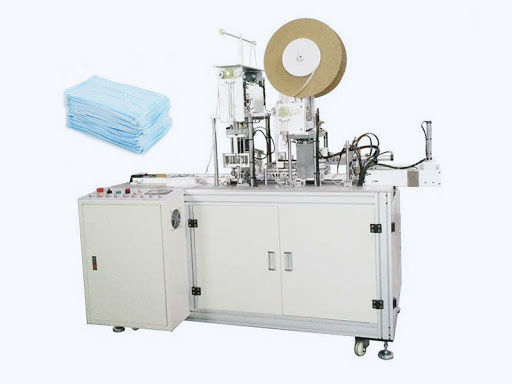

Professional N95 Mask Making Machine
Beijing Silk Road Enterprise Management Services Co.,LTD
Professional N95 Mask Making Machine
 |
| Place of Origin: | china |
| Certification: | ISO |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export package |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 sets/ month |
| Name: | Disposbale Face Mask Machine | Frame:: | Aluminum Profile |
|---|---|---|---|
| Voltage:: | AC220V,50HZ | Automatic Grade: | Full Automatic |
| Capacity:: | 100-120 Pcs/min. | Power Consumption:: | 8.7KW |
| High Light: | face mask maker machine,fully automatic mask making machine |
||
Description
This machine is mainly used for automatic forming of flat masks. After the entire roll of fabric is unrolled, it is driven by rollers, and the fabric is automatically folded and wrapped. Nose bridge rolls unrolled by traction. Cut and import into the hemmed fabric, both sides are welded to seal by ultrasonic welding, and then through the ultrasonic side seal. It is cut and shaped by a cutter ; transported to the two mask ear band welding stations through an assembly line. The final mask is formed by ultrasonic welding. After the mask is made, it is transported to flat belt line and collected.
Features of automatic one drag two mask machine:
1. Fully automated output, the mask body is automatically obtained by the ear strap machine, reducing labor costs and reducing the possibility of do not disturb.
2. The earband machine does not need to wait for work, adaptive interactive processing system, comprehensively increase production capacity.
3. Built-in anti-deformation and anti-travel device to ensure stable and reliable, 100% qualified input 24/7.
4. The preset quantitative integrated output of the fully automatic one drag two mask machine is neatly stacked, never scattered, hygienic and reliable.
5. From the production of the mask body to the ear strap fusion welding bridge, ear strap spot welding, fully automated, one-time molding, without any manual work:
6. The size of the nose bridge and the size of the body can be configured according to the drawings provided by the customer.
Specification:
| Size | 6500mm(L)×3500mm(W)×1950mm(H) |
| Mask specification | 175*95mm |
| Production efficiency | 100-120PCS/Min |
| Cutting layer | 3-4 layers(Standard 3 layers) |
| Qualification rate | 98-99% |
| Failure rate | Less than 1% |
| Weight | ≤5000kg, ground load bearing > 300kg |
| Working power | 220VAC ± 5%, 50z, rated power about 6.5-8.5KW |
| Compressed air | 0.4 ~ 0.7MPa, the use flow rate is about 300L / min |
| Operating environment | Temperature 10 ~ 35 ℃, humidity 5-35% HR No flammable and corrosive gas, no dust (cleanness not less than 100,000). |
